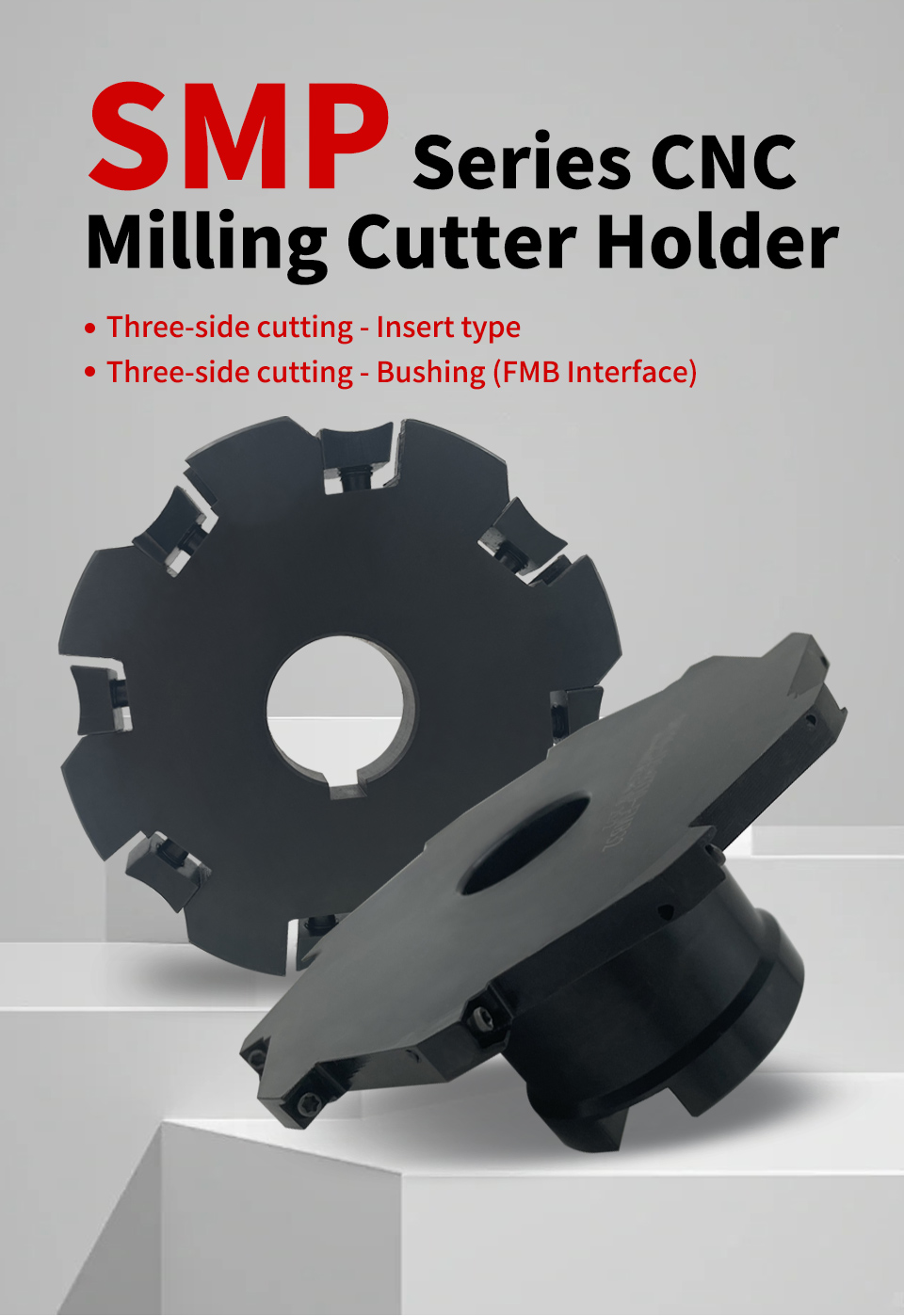

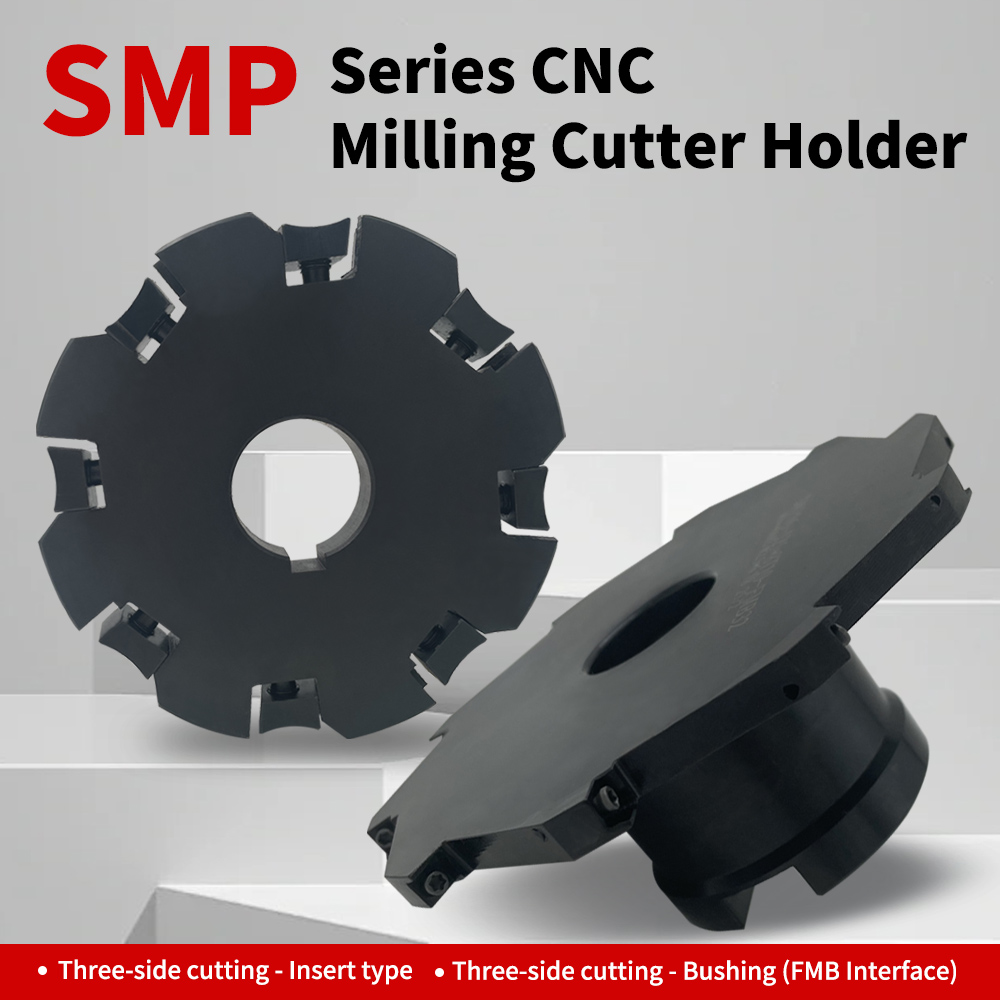

SMP Slotted End Mill Cutter Head, MPHT Inserts
1. Three-flute integrated disc: Completes T-groove bottom and sidewall cutting in one feed, improving metal removal rate by 30%.
2. Sleeve-type modular interface: Quick change of Ø63-250 mm discs, downtime <1 min.
3. MPHT06/08/12 universal insert holder: 4-flute usable, single-flute cost ↓40%, inventory halved.
4. 7 MPa internal cooling channel: Direct-acting tip, stainless steel cutting temperature ↓100 ℃, life +25%.
5. Staggered helical teeth + positive rake angle: Cutting force ↓15%, no vibration on thin-walled parts, Ra ≤1.6 µm.
6. 4-40 mm groove width full coverage: Same tool body covers all specifications, tool magazine positions reduced by 50%.
Product Information
Product Name: Three-Sided End Mill Cutter Head

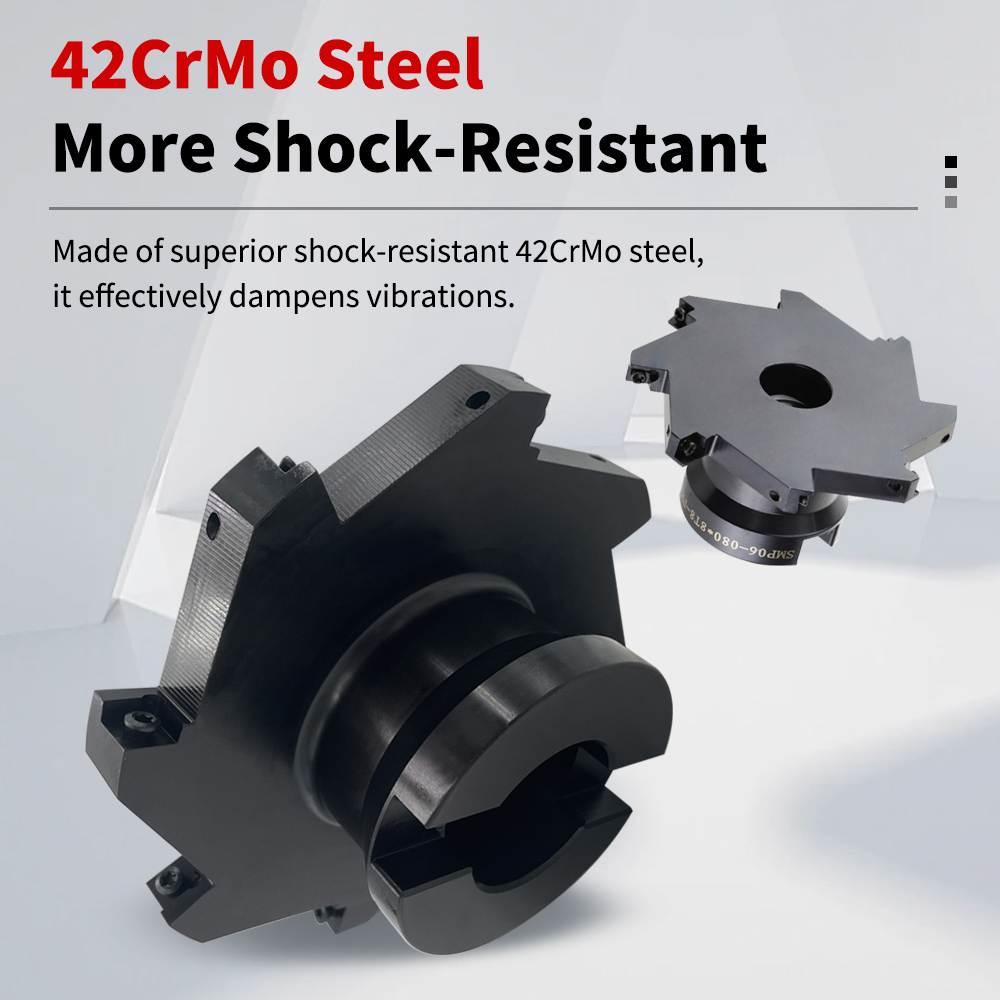

Product Material: 42CrMo
Product Series: SMP

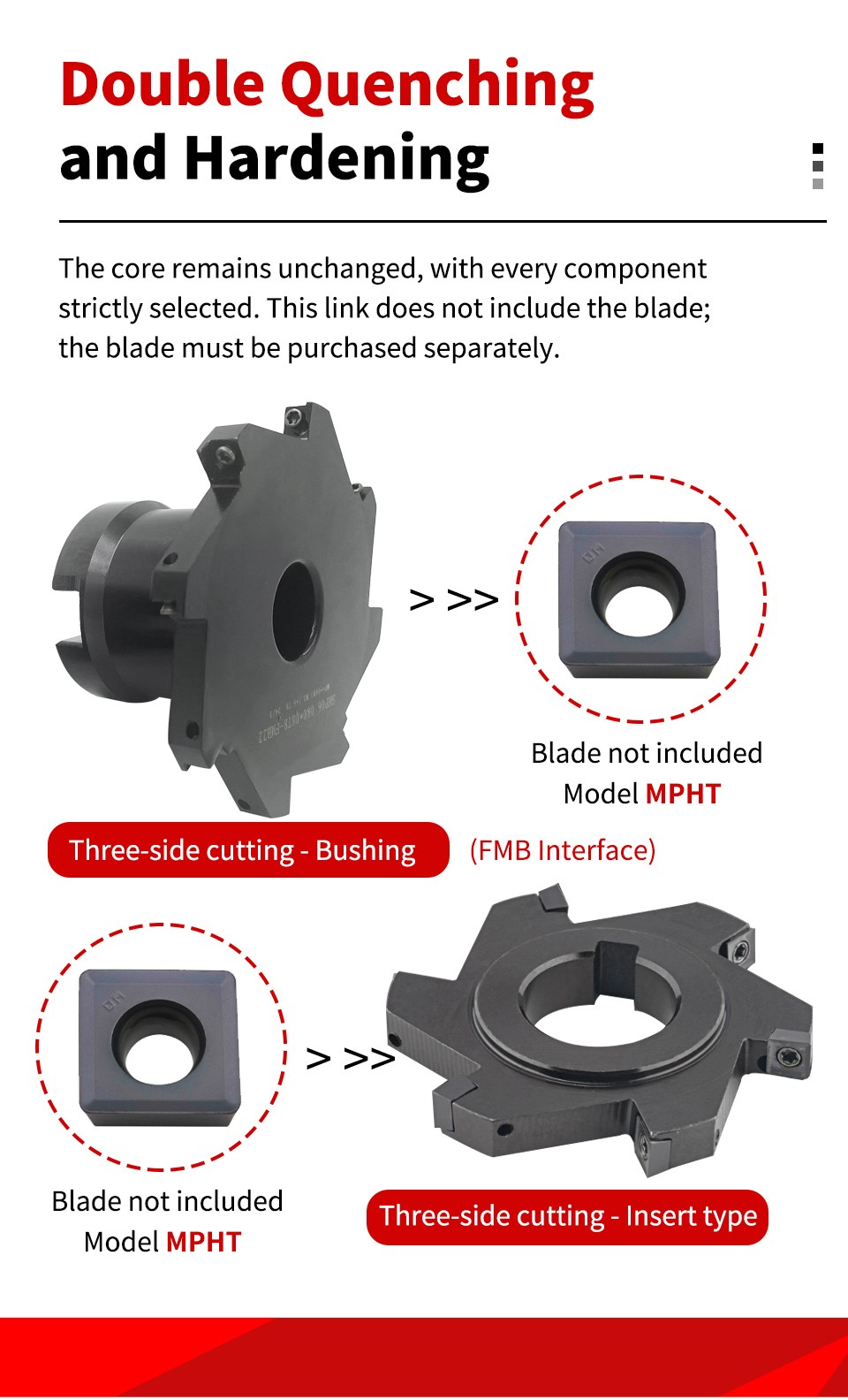

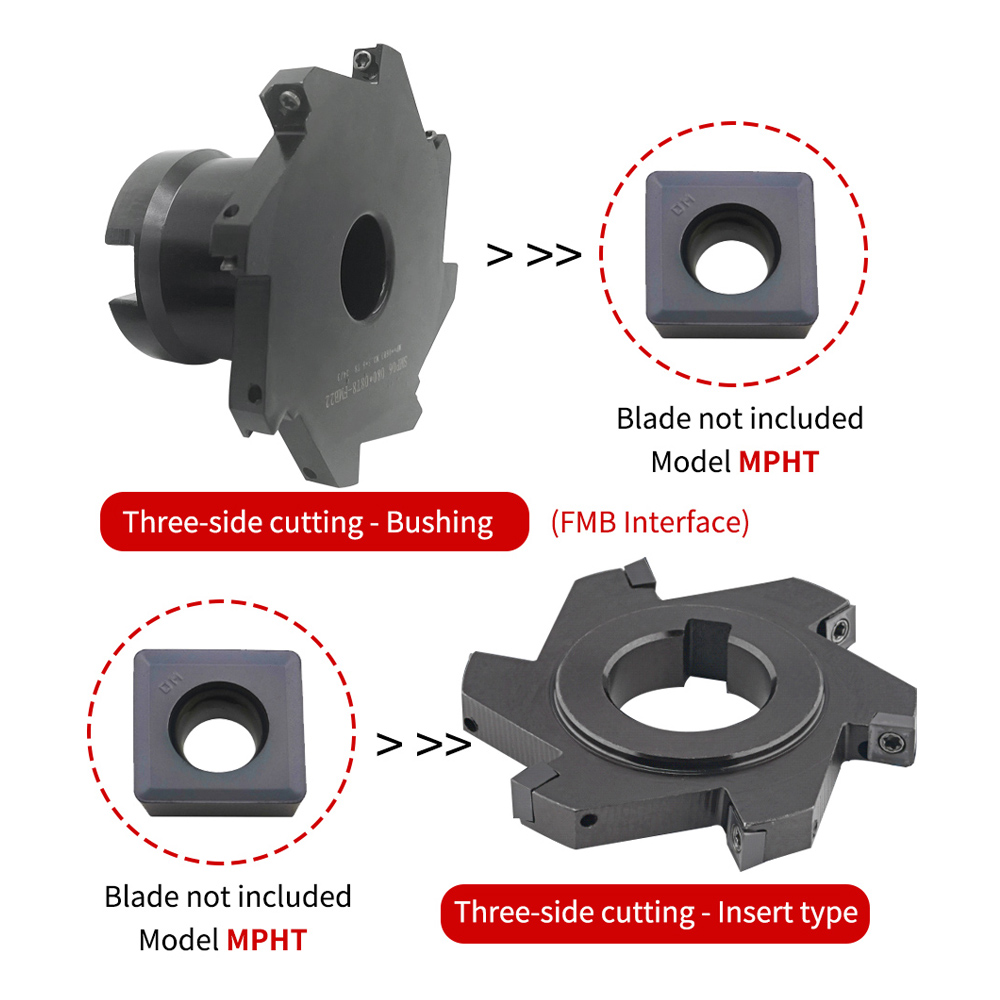

Applicable Inserts: MPHT series (sold separately)
Precautions: Adding coolant during machining is recommended; avoid rough machining.

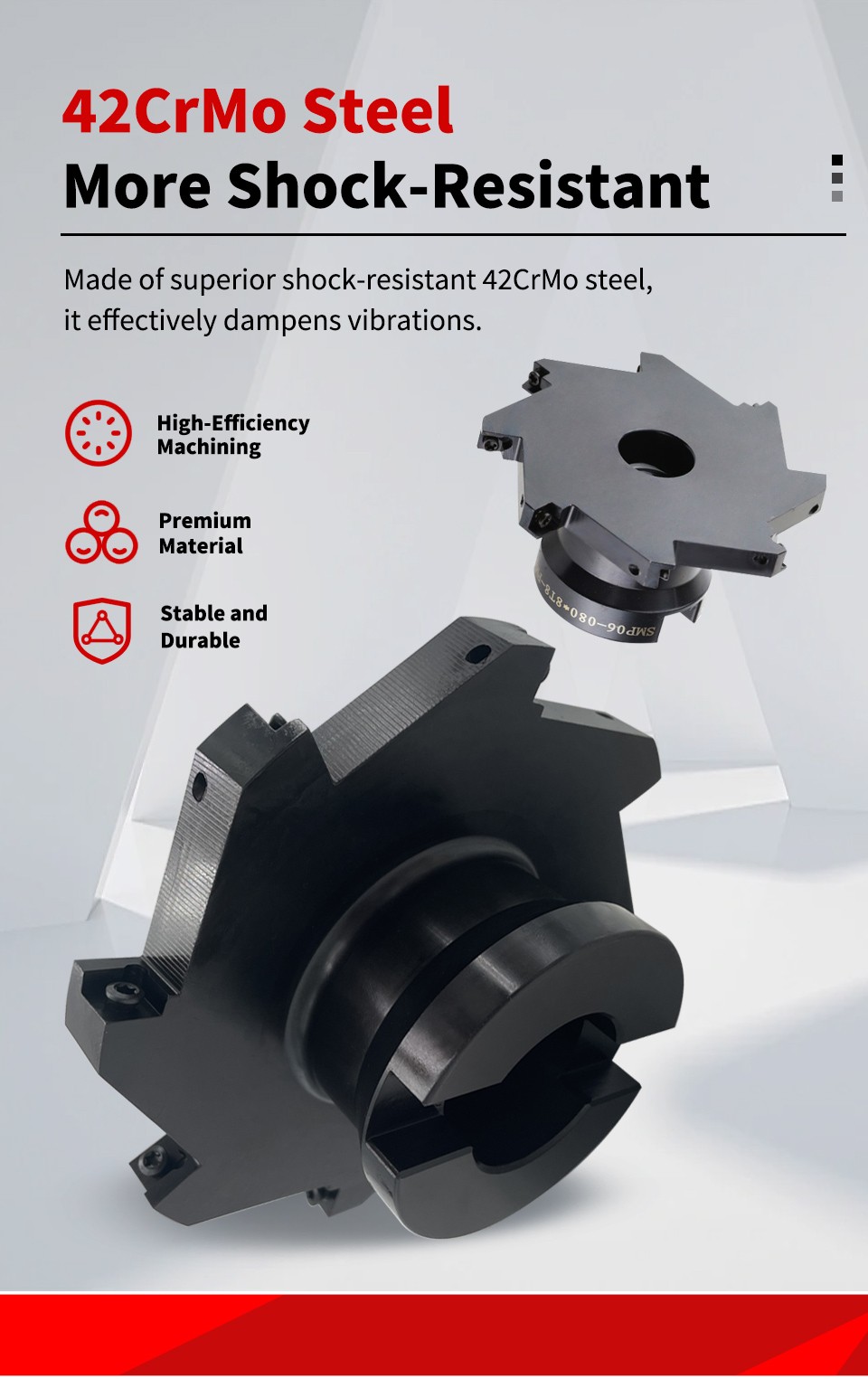

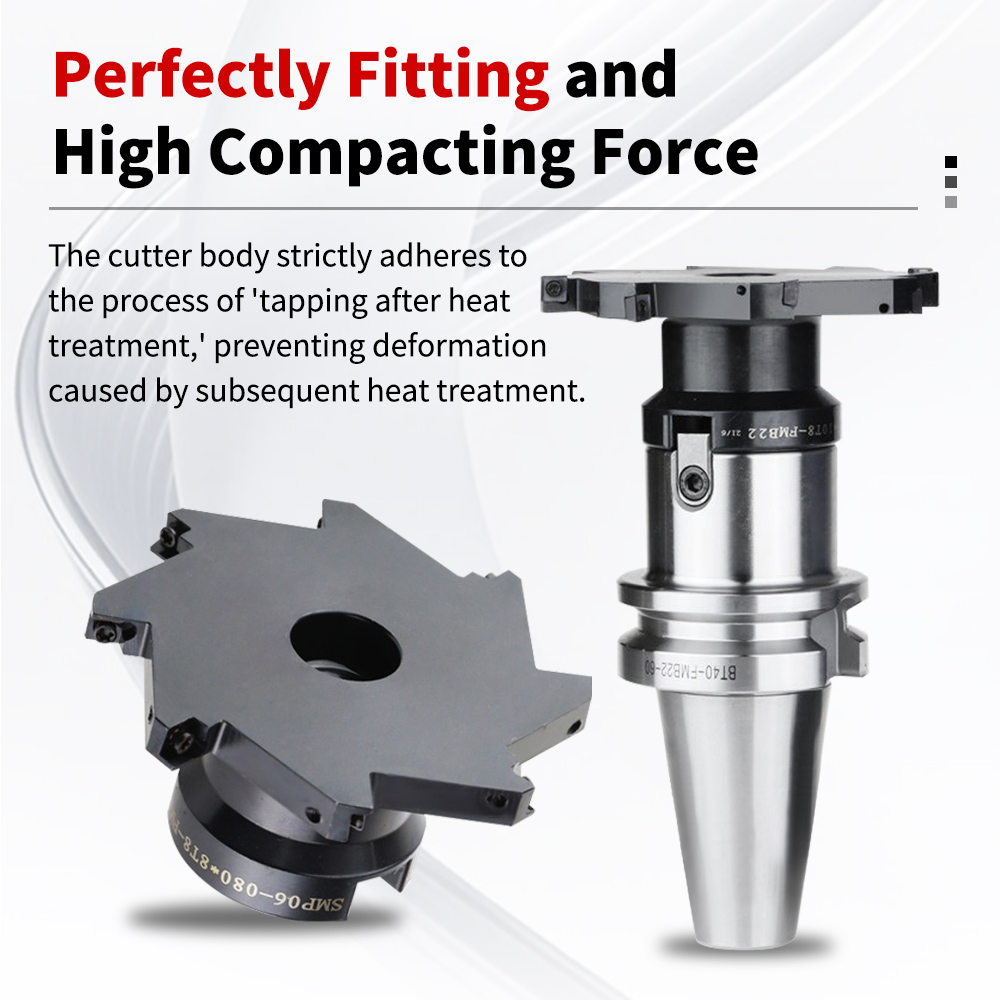

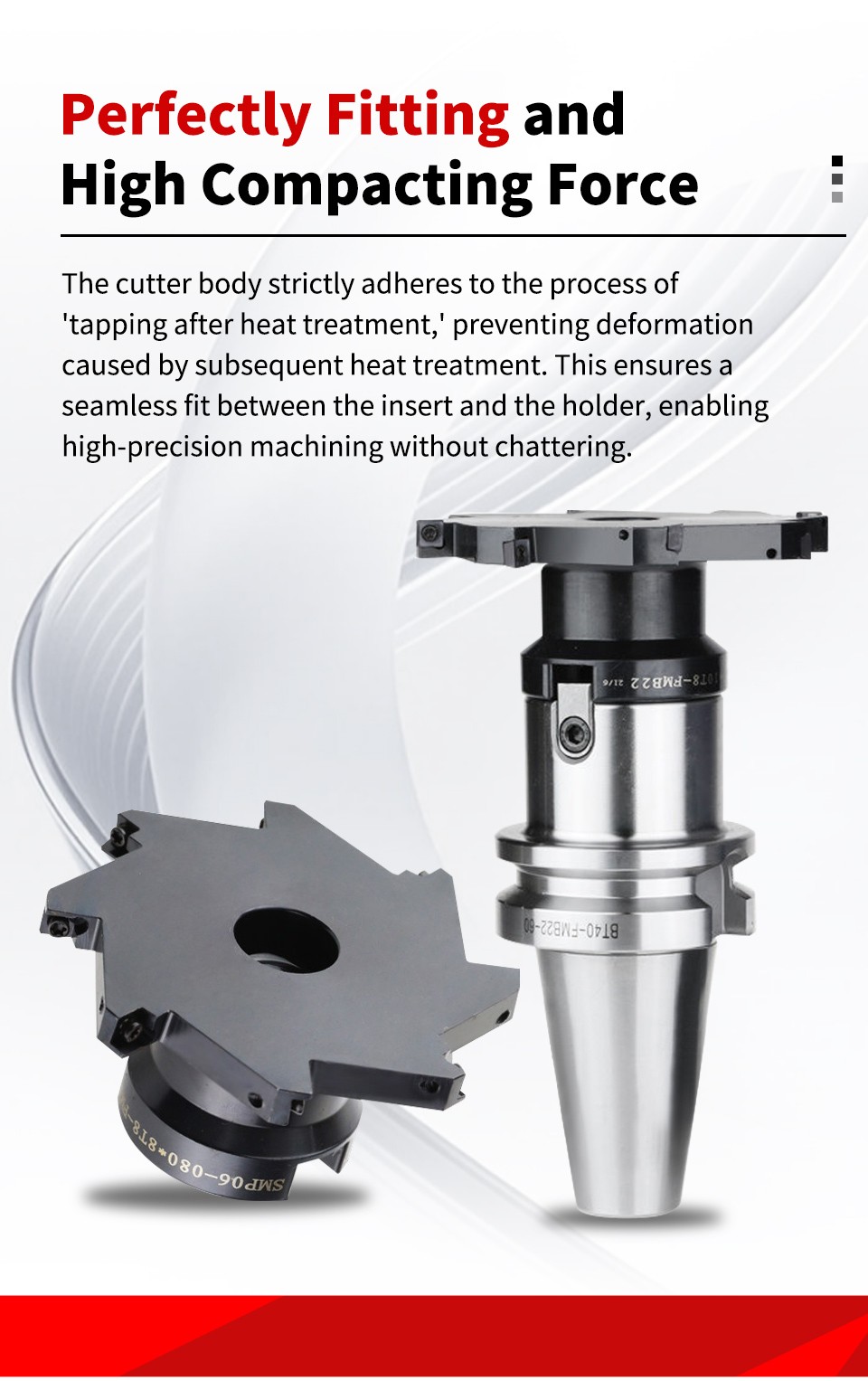

Product Features: High-quality 42CrMo material cutter body, double hardened, high strength, less prone to bounce, meets various machining needs, and extends service life.

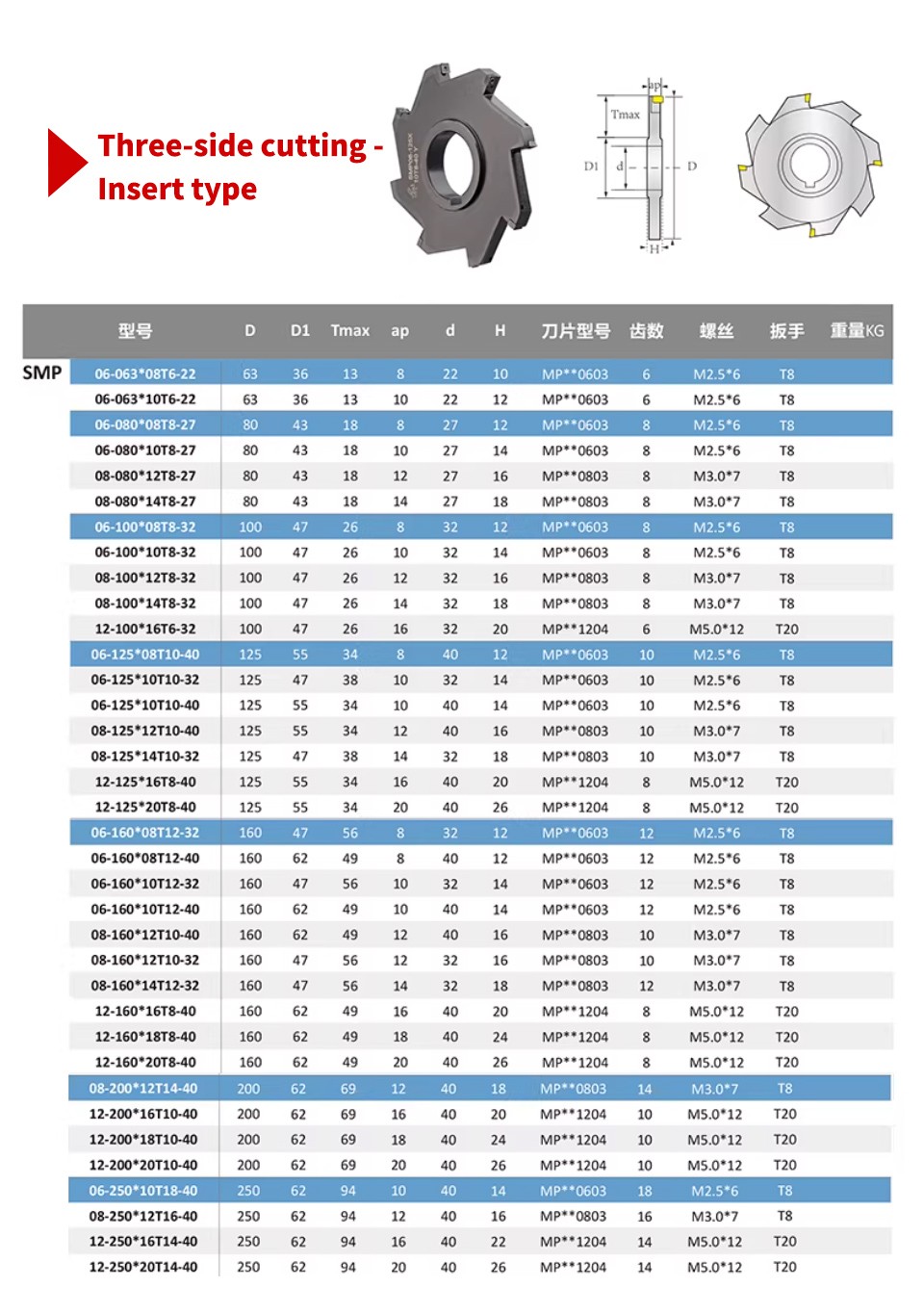

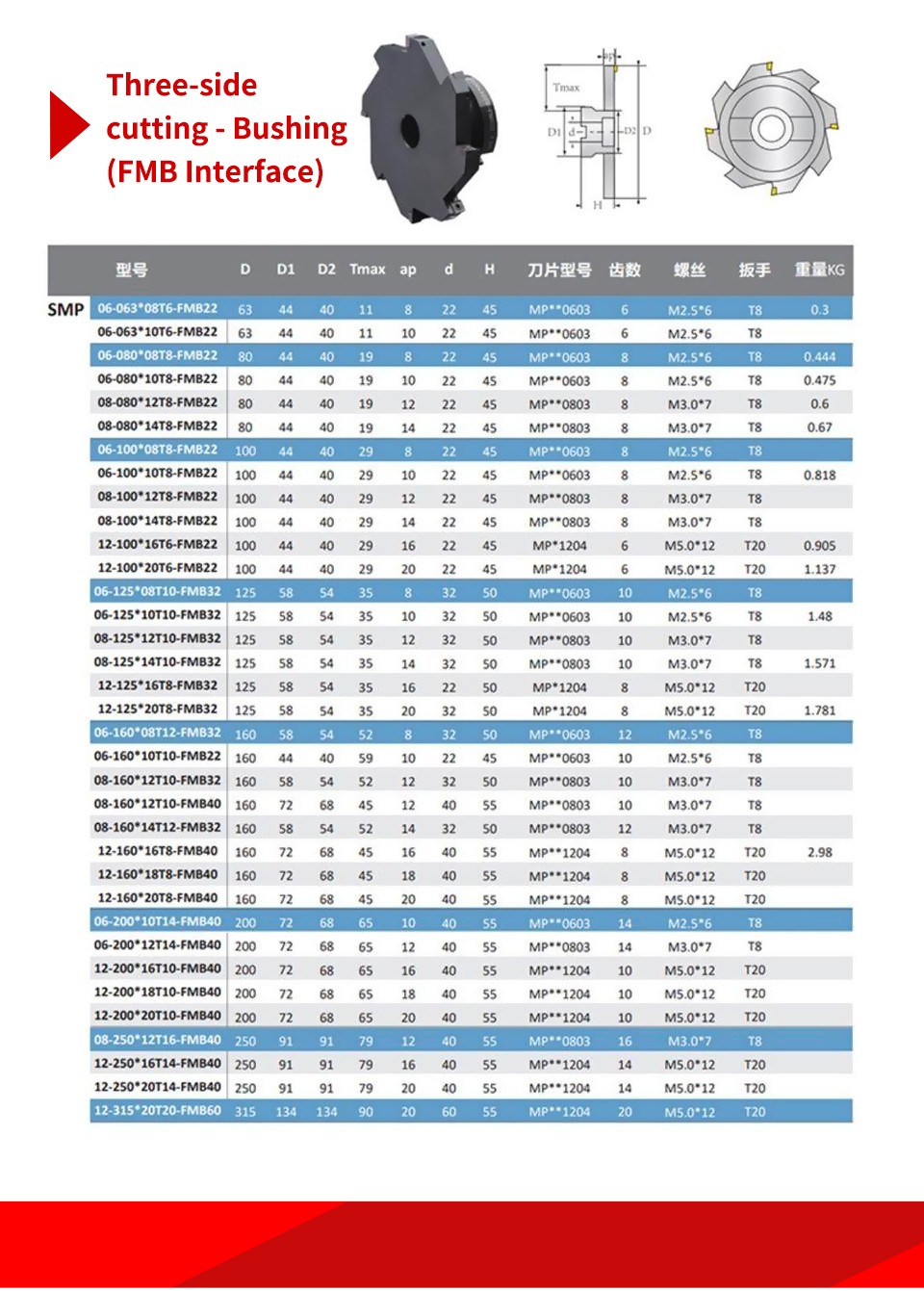

| Model Explanation |
| SMP06 = Blade model MPHT060304 |
| SMP08 = Blade model MPHT080305 |
| SMP12 = Blade model MPHT120408 |
| Friendly reminder: The keyways in the inner bore are all standard (if the inner bore is determined, there is no need to determine the keyways again). |
| (Inner bore 50mm, keyway 12) (Inner bore 40mm, keyway 10) (Inner bore 32mm, keyway 8) (Inner bore 27mm, keyway 6) (Inner bore 22mm, keyway 6) |
